Platform Model

The file extension for platform models in JoinedWorkz is: 'profile'.

Platform Model Elements

Stereotypes

The basic syntax for definition a stereotype:

stereotype name applicable for modelElementType
    [specialization of baseStereoType]
    [propagated by propagationType]

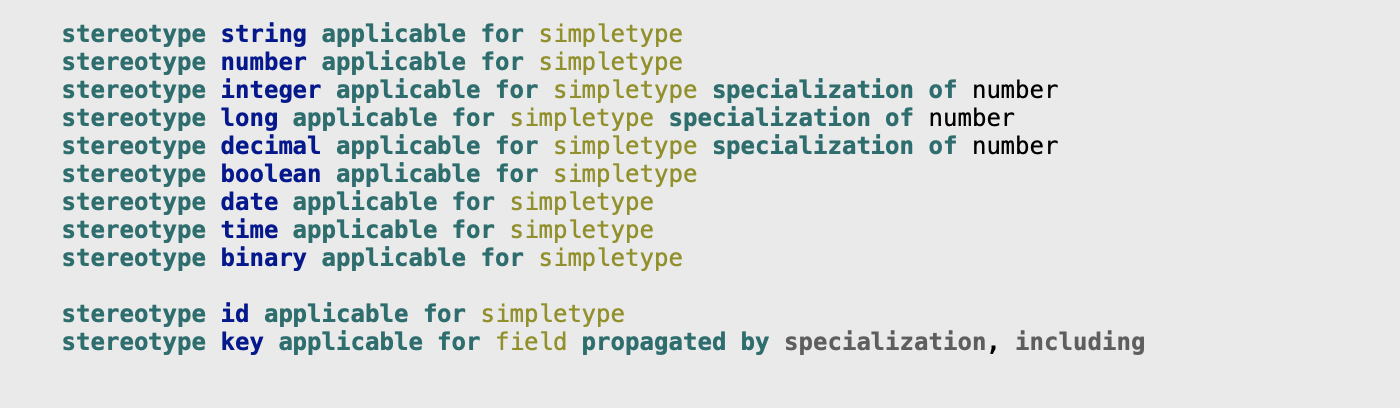

Some basic stereotypes defined in base-common platform:

Outlets

An outlet is the definition for an output which can be used by generators.

The basic syntax for definition an outlet:

[abstract] outlet name [specialization of baseOutput]
    [createNotExistingDirectory = booleanValue]
    [overwriteExistingFiles = booleanValue]
    [markAsDerived = booleanValue]
    [deleteFilesOnCleanBuild = booleanValue]
    [cleanWholdDirectoryOnCleanBuild = booleanValue]
    [keepLocalHistory = booleanValue]
    [directory = directory]

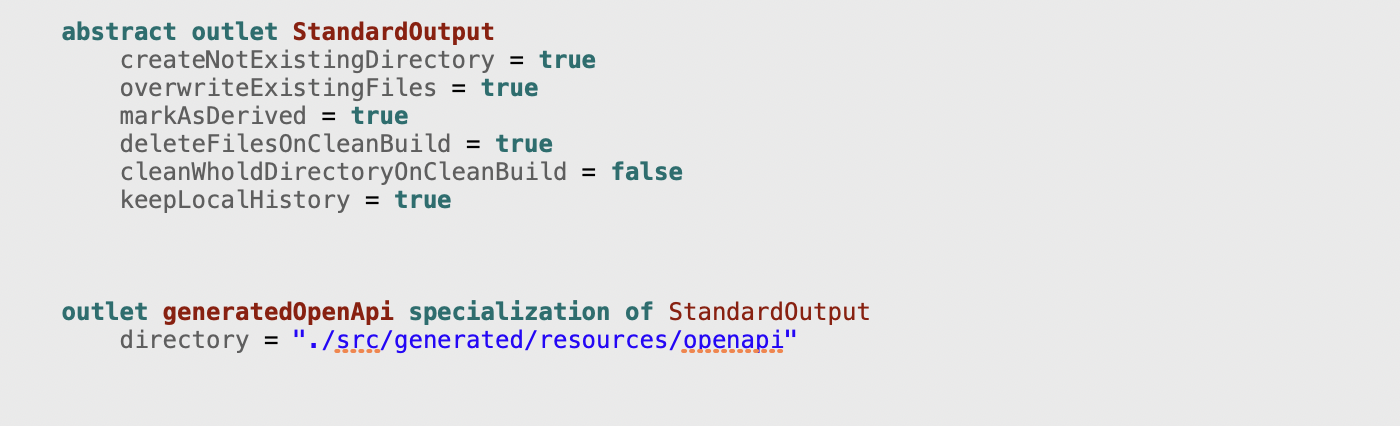

Definition of a standard outlet and a specialized outlet for OpenApi files:

Cartridges

A cartridge consists of one or more generators which belongs together. Cardridges and Generators Java-classes which can be coded by the templating framework of you choice or in plain Java.

The basic syntax for the definition a cartridge:

cartridge name implementation = JavaClassNameOfImplementation
    (outlets = OutletName)+

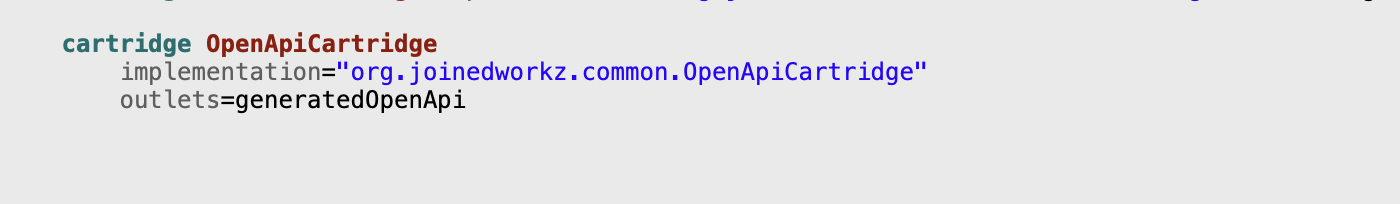

Definition of a cartridge:

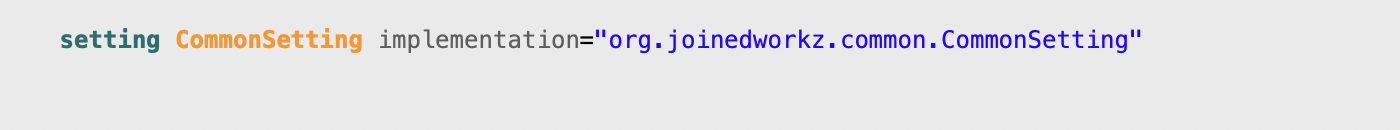

Settings

The basic syntax for definition of a platform setting:

setting name implementation = JavaClassNameOfDependencyInjectionModule

Definition of a cartridge:

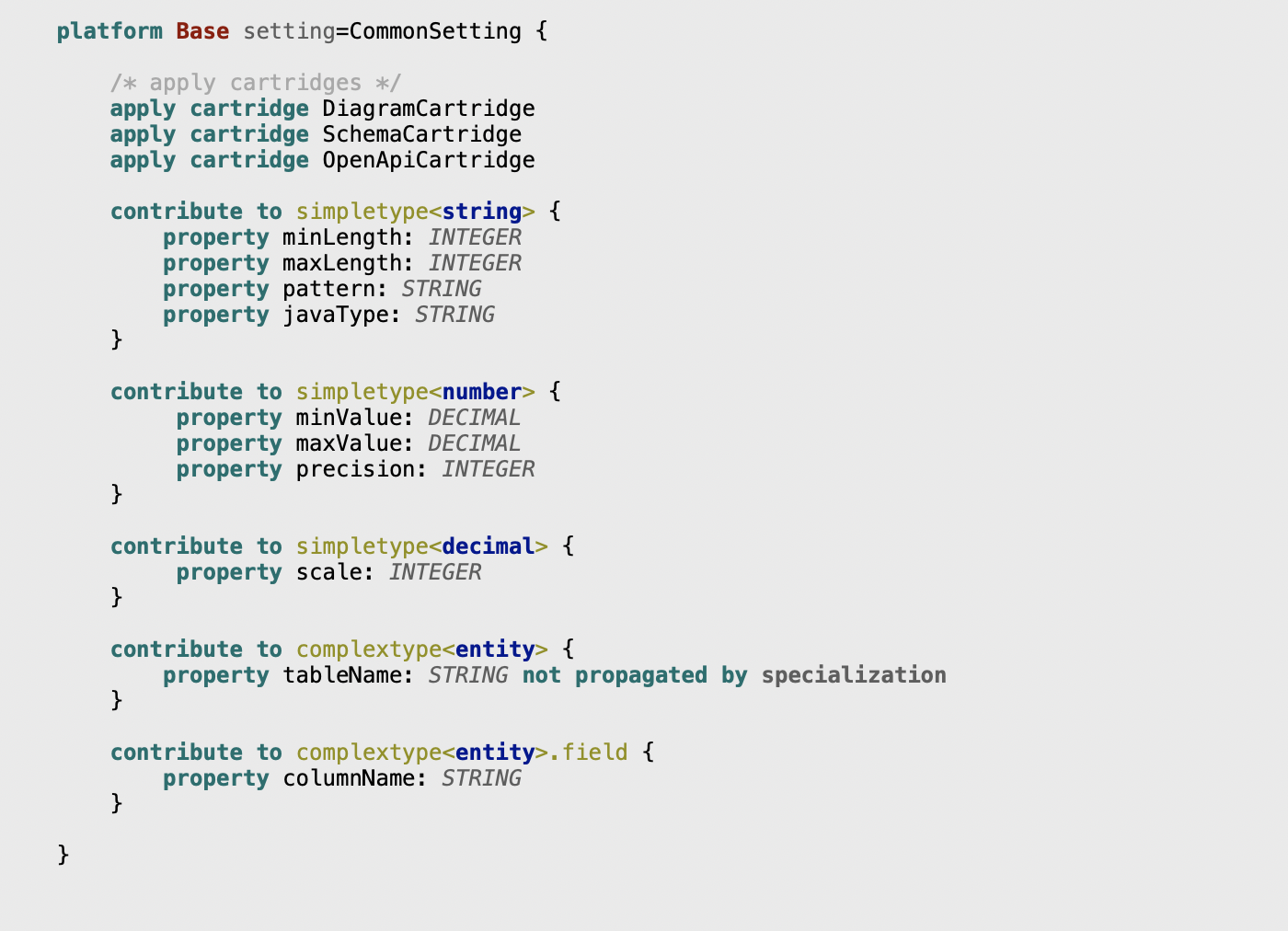

Platform

The basic syntax for definition of a platform :

platform name setting = SettingName {

    (apply cartridge CartridgeName)*
    (contribute to modelElementType { (property propertyName: propertyType)* })*
}

Definition of a cartridge:
